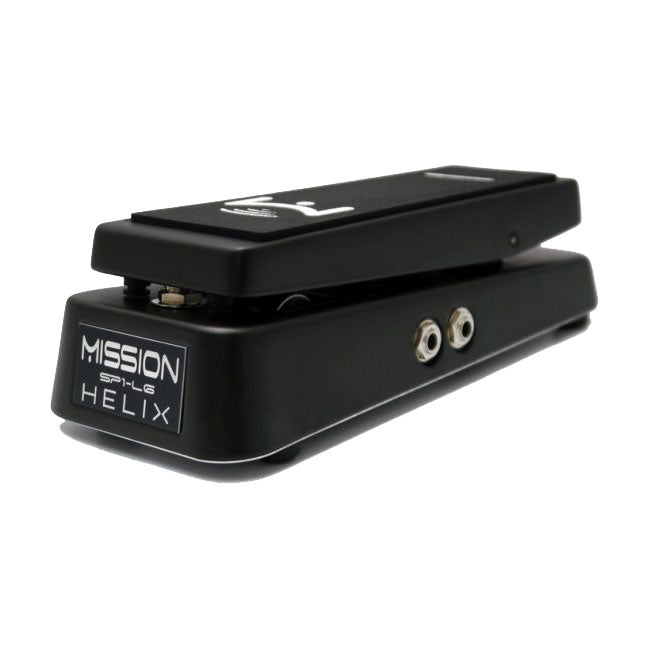

Mission Engineering SP1-L6H Line 6 Helix Expression Controller Pedal
by Mission Engineering
Sold out
$79.5
The Mission SP1-L6H connects to the Line 6 Helix Rack or Rack controller with a single TS cable for expression, and a single TS cable for the toe switch. For use with the HX Stomp, a TRS insert cable is required.
The toe switch function is only supported on the Helix Rack, Rack controller, and HX Stomp. Other Line 6 devices do not have a toe switch input. The switch output may be left unconnected if this function is not required.
The SP1-L6H can be connected to inputs on the Helix Rack, Rack floor controller, and HX Stomp.
The linear potentiometer is matched exactly to the specifications of the Line 6 Helix for a precise and natural response. The pedal has a toe switch to turn effects on and off without requiring a separate footswitch.
The Mission EP1-L6 is recommended for other Line 6 products where a toe switch input is not available.
The toe switch function is only supported on the Helix Rack, Rack controller, and HX Stomp. Other Line 6 devices do not have a toe switch input. The switch output may be left unconnected if this function is not required.
The SP1-L6H can be connected to inputs on the Helix Rack, Rack floor controller, and HX Stomp.
The linear potentiometer is matched exactly to the specifications of the Line 6 Helix for a precise and natural response. The pedal has a toe switch to turn effects on and off without requiring a separate footswitch.
The Mission EP1-L6 is recommended for other Line 6 products where a toe switch input is not available.
- Pedal dimensions are 10″ x 4″ x 3″
- Weight is 3.2lb
- Potentiometer is 10K Ohm Linear
- Switch is TS Momentary
