Disaster Area Designs DPC-8EZ Gen 3 Programmable Bypass Switcher with MIDI

The DPC-8EZ Gen3 is our updated compact pedalboard control system with eight effects loops and MIDI.

A bypass looper can streamline your rig in ways you never thought possible imagine being able to tap one footswitch to go from verse to chorus to bridge of a song, while changing up to eight different effects plus two MIDI devices!

If you already have a MIDI controller, the DPC-8EZ can act as a MIDI slave on any available channel. You can even connect two or more DPC-8EZ to control more pedals.

The DPC-8EZ is fully compatible with the Disaster Area Gen3 pedal controllers connect it to add eight effects loops under MIDI control. The DPC-8EZ can also function as a standalone MIDI controller for up to two devices.

Gen 3 Features:

• Faster, more powerful 32-bit processor
• Improved USB MIDI capabilities
• User-definable LED brightness (10 levels)
• New MIDI mode controls up to two MIDI devices with program select and tap tempo
• Preset mode now controls MIDI and loops

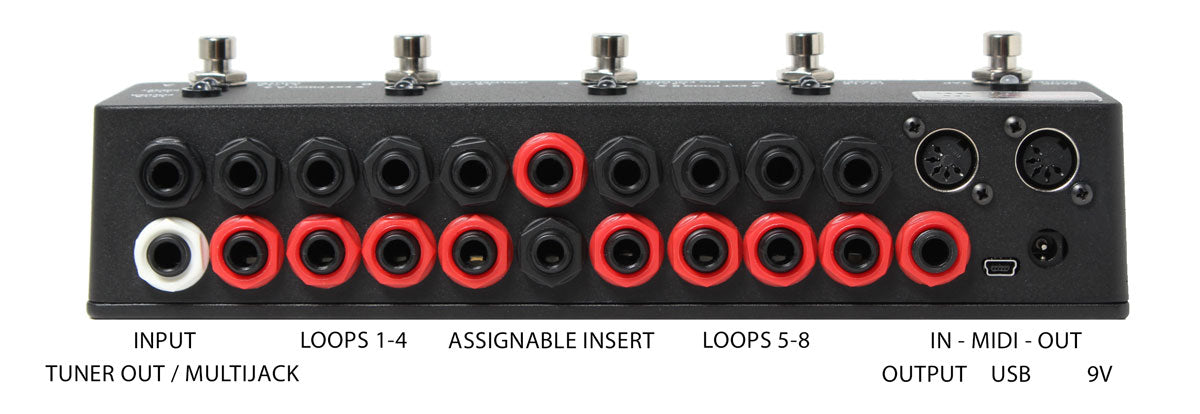

• Tuner output jack doubles as a MultiJack
• MultiJack functions as MIDI input & output OR double MIDI output
• MultiJack is directly compatible with Chase Bliss, Empress, or Meris pedals
• Compact size Ð 10_ x 2.6_ x 2_ excluding switch caps and jacks.
• No special power supply required Ð uses less than 120mA, 9V from a Pedal Power 2 or similar.

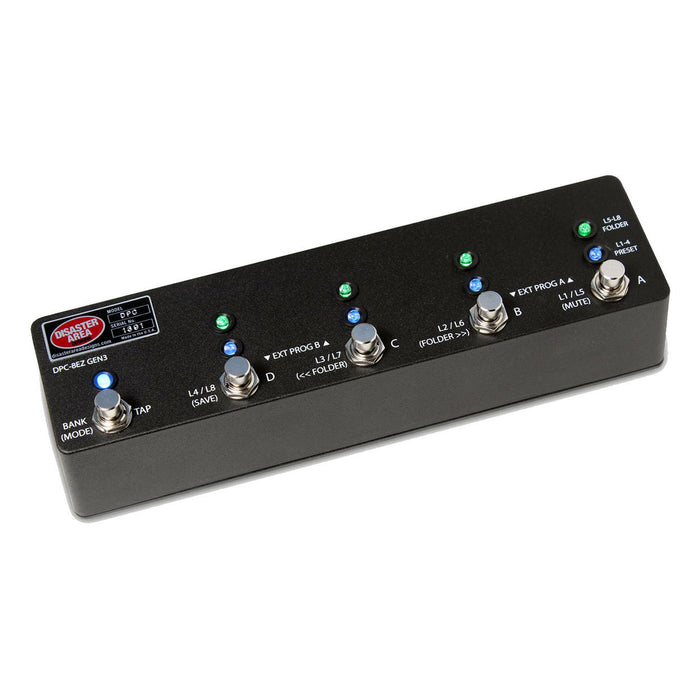

• 5 footswitches for preset selection or manual effects loop control.
• 48 presets accessible by foot, arranged in four folders with three banks of four presets each.
• 128 presets accessible using an external MIDI controller
• Full MIDI control of presets and effects loops
• 8 effects loops with a custom-designed switching matrix
• MIDI mode controls up to two MIDI devices
• Dedicated insert connection may be assigned to any position in the effects loop section.
• Always-on tuner out with tuner mute, doubles as second MIDI interface
• Status LEDs with user-definable brightness work in any situation from an orchestra pit to full sun.
• Exclusive Z-MODE buffer allows you to tailor the impedance to work with fuzz, vibe, wah, and other impedance-sensitive pedals
• USB connector for MIDI connection and future firmware upgrades (PC and Mac firmware update tools available.)
